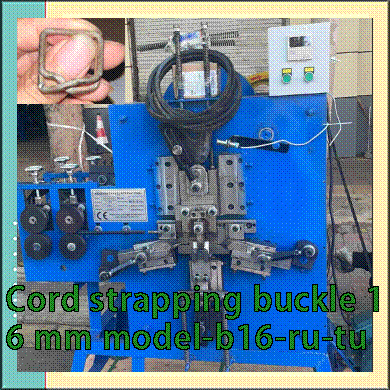

STRAP BUCKLE 16 MM MACHINE
|
(1)Machine Name |
16 WIRE SEAL MACHINE |
|
(2)Model No. |
model-b16-ru-tu |
|
(3) Wire buckle size: |
(3.0-3.5 mm thickness) |
|
(4)Feeding length: |
260mm |
|
(5) .Motor Power: |
1.1w |
|
(6) Power: |
220V, single phase/or 380 v 3 phase for selection |
|
(7).Production rate: |
60pcs/minute |
|
(8) Accessories: |
removable cutter two pieces, spring two pieces,
rubber belt one piece |
|
(9) Net Weight |
650 KG |
|
(10) Machine Size |
2.5 M3 |
|
(11) packing |
Wood box packing with steel wire re-enforced inside
|
|
(12) installing |
By foot screw under the machine with ground bolts |
|

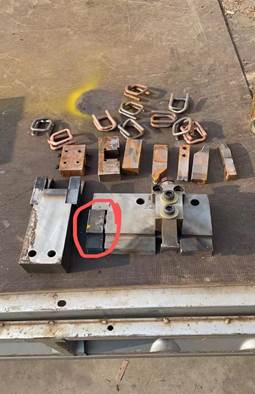

(13) spare parts |
(13-1) 2 rubber belts (13-2) two steel springs
(13-3) two cutter replaceable for the cutting mold
|
|

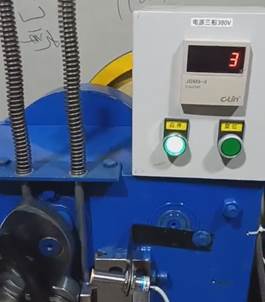

(14) automatic
sensing counter |
|
|

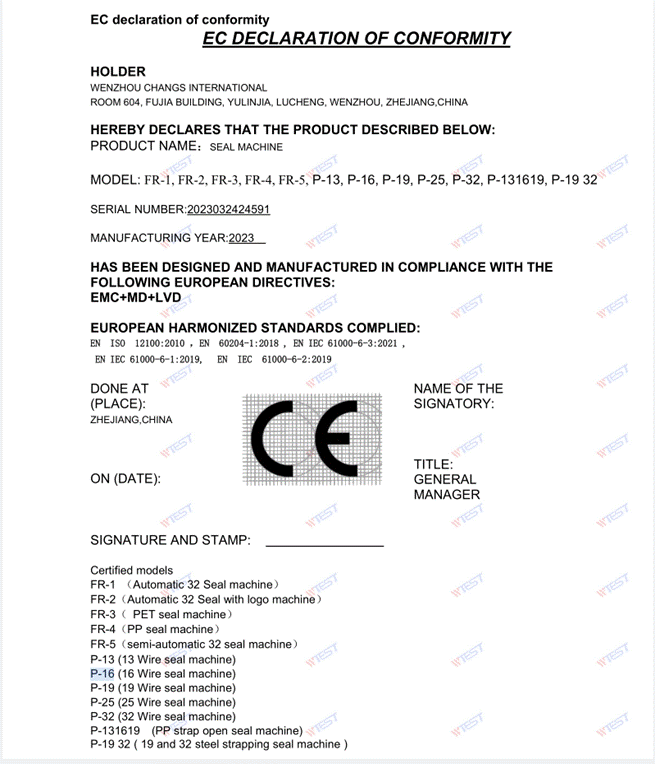

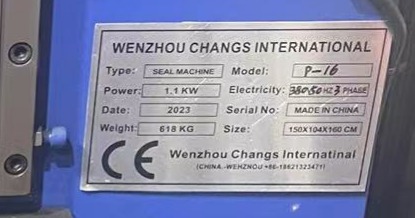

(15) Name plate
with CE mark |
|
|
Optional
selection for wire coil un-coiler which is good for 800 kg wire coil and
price is 185 USD/set with box 1.2 M2 and weight 100 kg. |
|
