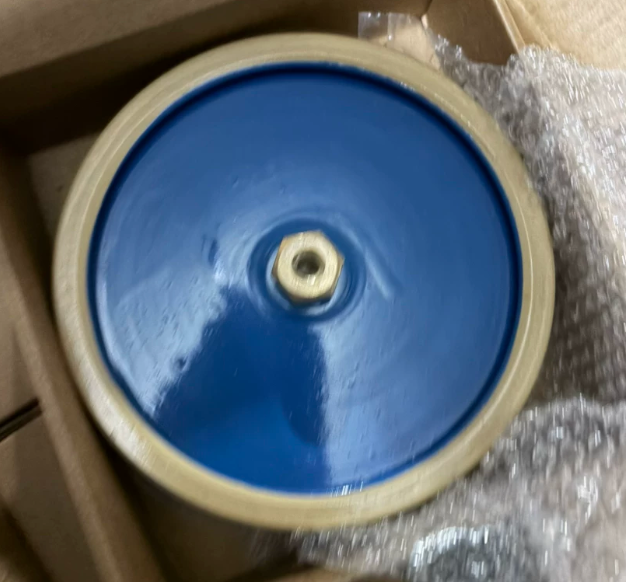

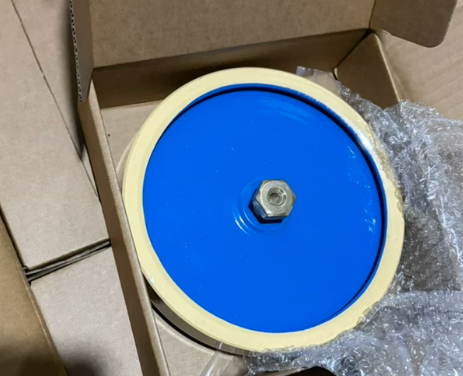

Disk ceramic capacitor
Key attributes
Model Number
CCG81-7
Description
ceramic capacitor
Brand Name
1500PF
Place of Origin
China Zhejiang
Application
RF / Microwave
Product name
RF Power plate capacitor
Part Number
CCG81
Voltage
5KV 10KV 15KV
Capacitance
100PF 300PF 500PF
Rated power
30KVA
Dielectric
R85, N750
Insulation Resistance
Min. 10000MΩ
Dissipation Factor
Max. 0.08% (1kHz 1V)
Temperature characteristics
-750PPM/°C
Packaging and delivery
Selling Units
Single item
Single package size
10X10X4 cm
Single gross weight
1.0 kg
