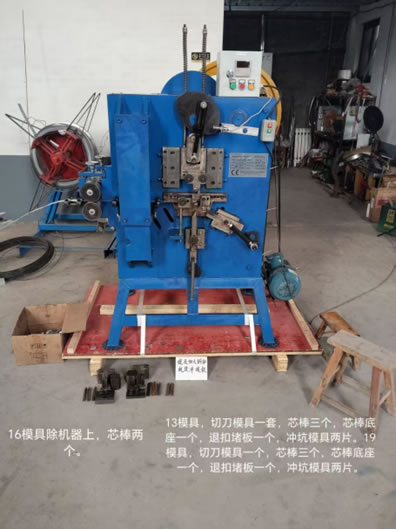

SPECIFICATION FOR PP STRAP CLIP MACHINE

Features of the machine:

• Heavy duty solid machine of gear transmission system
• For your 7 d x 24 h production
• Deep embossed inner points ensuring firm grip over PP strap
• Full automatic running with one worker running 2 or 3 machines
• Long term online after service for solving all problems

Specification & Data

Machine Name

No384-9

PP STRAPPING SEAL MAKING MACHINE

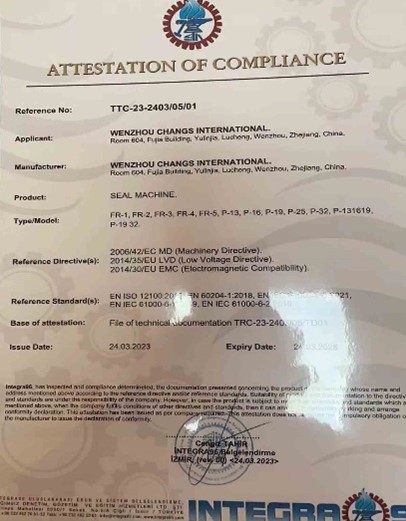

CE

CERTIFICATION

  NO.:

M.2019.206

.C2559

Model No.

PP-1613

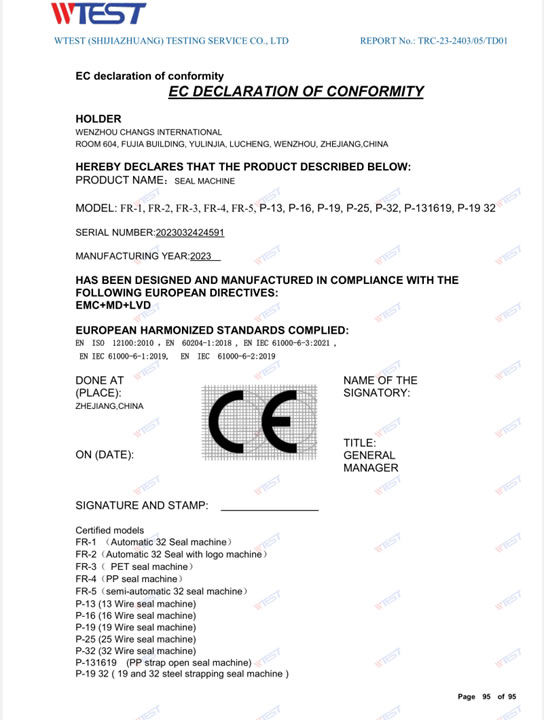

CE REPORT NO:

TCF no.

MICEZ-1903

-0265-MD+LVD

Technical data

Seal size

Seal

Width

Lengthh

T

Photo of

real PP

strapping

seals

13 mm

13

28 mm

0.5 mm

16 mm

16

28 mm

0.5 mm

Feeding Length

260 mm

Production rate

60-80 PC/MINUTE

Motor power

1.1 kw

We cam offer you with all the voltage plans you may

select from below voltage plan according to your

local power supply system.

Voltage plans selection

V

Phase

HZ

A plan

380

3

60

B plan

220

3

60

Technical data

C plan

220

Single phase

Accessories

Cutter of Spring Steel: 2 pieces

Molds for both 1/2’ and 5/8’ PP seal.
Core plates, 2 pieces

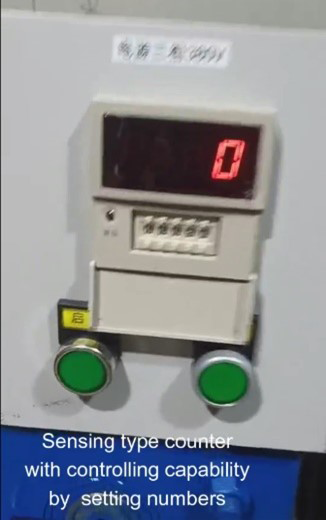

Automatic counter for controlling quantity of each box production

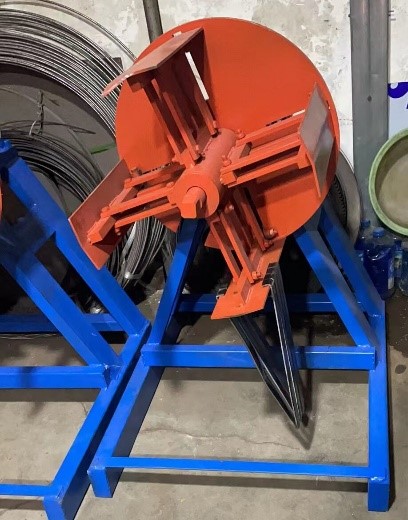

Compact un-coiler for 200 kg steel coil load(COST IS 100 USD/SET)

Optional selection of 800 kg un-coiler which has an extra cost of 350 USD/set with 1.2 M3 packing box and 100 kg weight.

Net Weight

600 KG

Gross Weight

650 KG

Machine Size

1400x750x1250

Packing Size

1500x800x 1350

Packing method

Plywood box with reinforced steel structure

Lead time

3-4 weeks after advance payment 30%
One-year guarantee period, except quick-wear parts and natural damage or caused by human errors.

Payment term

30% advance payment by T/T before production
70% balance against confirmation of samples and videos from the completed machine testing. before shipping.

 CHANGS INTERNATIONAL      TEL:+86-18621323471 [email protected]
