SPECIFICATION SHEET

Specification & Data for oscillating re-winder

Product Name

Oscillating mechanical re-winder

Products model: OS-1332

Maximum coil weight:  450    kg

weight

2000 Kg：

Power 110 V 3phase 60 hz
Or customized  power

Machine size:  L1400 X 1500W X H 1600   mm

Technical data

Maximum thickness:
1.2 mm

13 x 0.6 mm
16 x 0.8 mm
19 x 0.9 mm
32 x 1.1 mm

Maximum power:

5 KW

Width of re-winding

12.7 mm x 55 mm,16mmx65 mm, 19 x65 mm, 32 x 188 mm

Speed of rewinding：

28 Meters/per minute

Quality standard

China National standard

Main spare parts

Ball bearing accessories: 6314  6018 6204

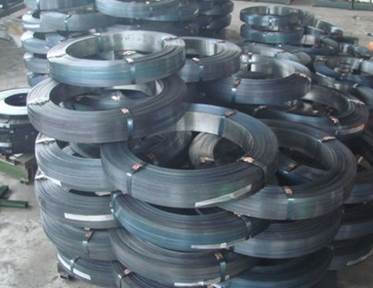

Weight of each coil: 13mm，16mm,19mm,50kg,
32mm ,250 kg

The frame for the oscillating re-winder is independent and separate from other re-winder

Packing the oscillating re-winder will be packed with plywood pallet and wrapped with wrap films
