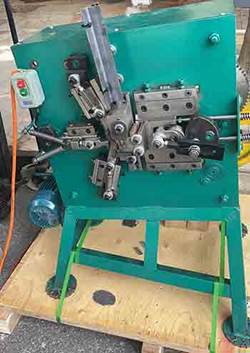

CATALOGUE FOR SEMI AUTO STEE STRP SEAL MACHINE |
|
|||||||||||
Specification for Seal Machine |
|
|||||||||||
Machine Name |
Seal machine |
CE CERTIFICATION NO.: |
M.2019.206.C2559 |
|
||||||||
Model No. |
P-1932 (SUBORDINATE MODEL OF FR-3) |
CE REPORT NO: |
TCF no. MICEZ-1903-0265-MD+LVD |
|
||||||||
|

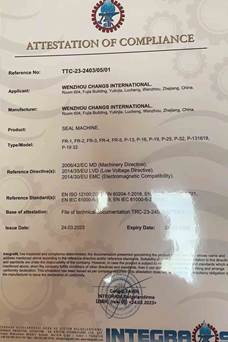

CE COVER PAGE |
|
|
|||||||||
Technical data |
seal size |
|
||||||||||
Seal |
W |
L |
T |
|
|
|||||||
Technical data |
32 mm (inner diameter size)) |
32 mm |
45-57 mm |
0.7-1.0 |
|
|||||||
19 |
19 |
45-57 mm |
0.7-1.0 |
|
||||||||
Feeding L |
260-400 mm |
|||||||||||
Production rate |
60-PC/MINUTE |
|||||||||||
Motor power |
1 kw |
|||||||||||
Voltage plans |
V |
Phase |
HZ |
|||||||||
A plan |
380 |
3 |
60 |
|||||||||
B plan |
220 |
3 |
60 |
|||||||||
Technical data |
C plan |
220 |
Single phase |
|||||||||
Accessories |
|
|
||||||||||
Automatic control counter for numbers controllong |
|
|||||||||||
Cutter of Spring Steel: 3 pieces |
|
|||||||||||
Core-plates parts 2 pieces. for each size o f32 and 19 mm |
||||||||||||
Net Weight |
550KG |
|
||||||||||
Gross Weight |
600 KG |
|
||||||||||
Machine Size |
1400x680x1200 |
|
||||||||||
Packing Size |
2.64 m2 |
|
||||||||||
Packing box |
|
|
||||||||||

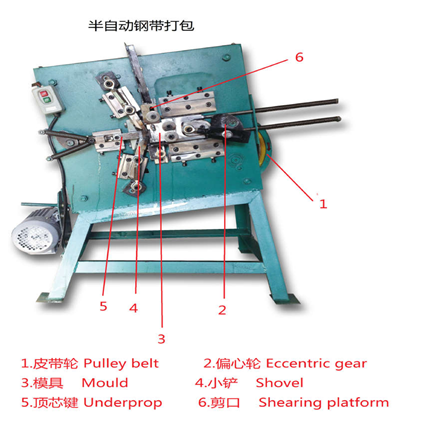

Specification for semi-automatic strap seal machine
NO |
Items |
Data |
1 |
Machining strip width range (mm) |
30～55 |
2 |
Machining strip thickness range (mm) |
0.3～0.9 |
3 |
Seal inner width range (mm) |
10～100 |
4 |
Steel material |
Zinc coated steel coil |
5 |
Feeding range (mm) |
380 |
6 |
Main motor power (kw) |
1.1 |
7 |
Seal inner width（mm） |
16,19,25,32,40 |
8 |
L*W*H（mm) |
1100*700*1200 |
9 |
Weight（kg） |
300 |
10 |
Model |
FR-5 |
