Steel-scrap-recycle strapping clip and packing clip machine





CATALOGUE FOR SEMI AUTO STEE STRP SEAL MACHINE
Specification for Seal Machine
Machine Name	Seal machine	CE CERTIFICATION  NO.:	M.2019.206.C2559
Model No.	P-1932 (SUBORDINATE MODEL OF FR-3)	CE REPORT NO:	TCF no. MICEZ-1903-0265-MD+LVD

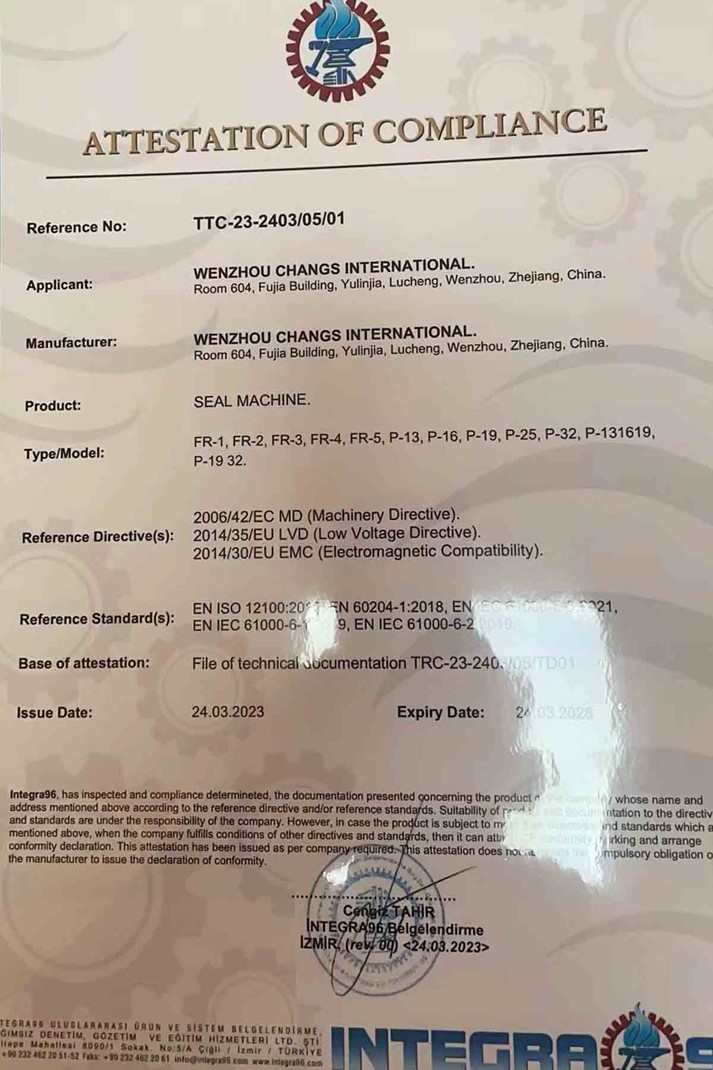

		CE COVER PAGE

Technical data	seal size
	Seal	W	L	T

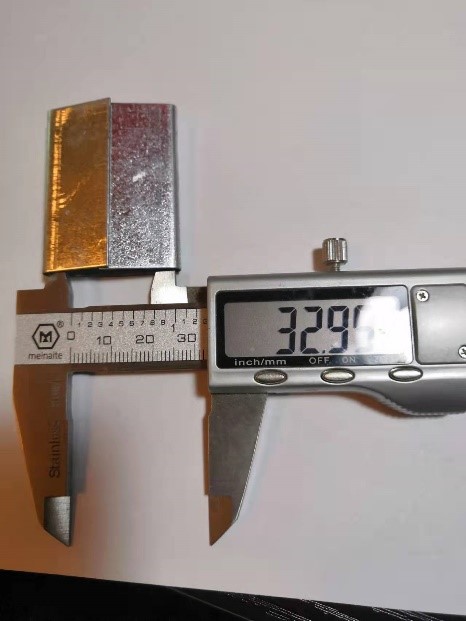

Technical data	32 mm (inner diameter size))	32 mm	45-57 mm	0.7-1.0

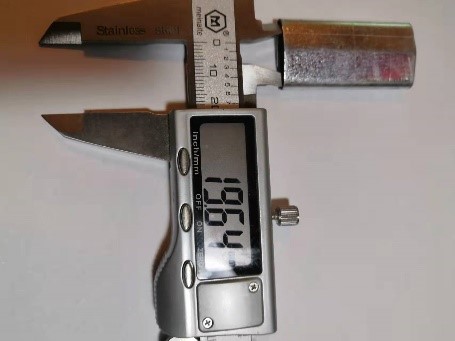

	19	19	45-57 mm	0.7-1.0
	Feeding L	260-400 mm
	Production rate	60-PC/MINUTE
	Motor power	1 kw
	Voltage plans	V				Phase	HZ

	A plan
	B plan
Technical data	C plan
Accessories

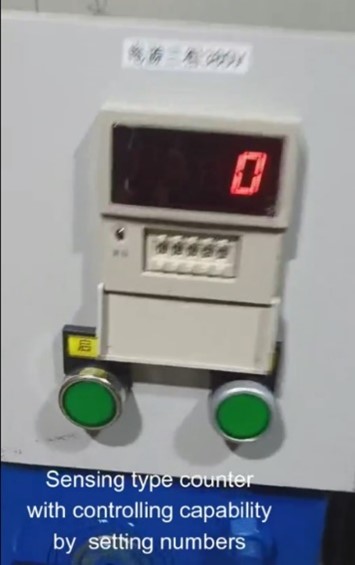

	Automatic control counter for numbers controlling
	Cutter of Spring Steel: 3 pieces
	Core-plates parts 2 pieces. for each size o f32 and 19 mm
Net Weight	550KG
Gross Weight	600 KG

Machine Size	1400x680x1200
Packing Size	2.64 m2

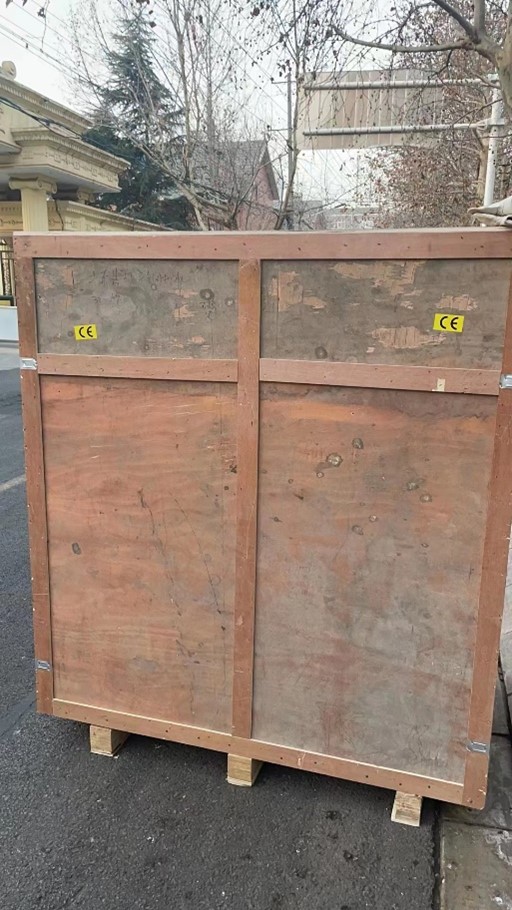

Packing box

NO	Items	Data
1	Machining strip width range (mm)	30～55
2	Machining strip thickness range (mm)	0.3～0.9
3	Seal inner width range (mm)	10～100
4	Steel material	Zinc coated steel coil
5	Feeding range (mm)	380
6	Main motor power (kw)	1.1
7	Seal inner width（mm）	16,19,25,32,40
8	L*W*H（mm)	1100*700*1200
9	Weight（kg）	300
10	Model	FR-5



7	Seal inner width（mm）	16,19,25,32,40
8	L*W*H（mm)	1100*700*1200
9	Weight（kg）	300
10	Model	FR-5



1. Connect the power supply, make sure the running direction of the belt pulley(1) same as the arrow direction on the pulley.
2. Turn off the machine, run the machine by hand through pulley. Make the Mould(3) to the top place.

1. Connect the power supply, make sure the running direction of the belt pulley(1) same as the arrow direction on the pulley.
2. Turn off the machine, run the machine by hand through pulley. Make the Mould(3) to the top place.

NO	Items	Data
1	Machining strip width range (mm)	30～55
2	Machining strip thickness range (mm)	0.3～0.9
3	Seal inner width range (mm)	10～100
4	Steel material	Zinc coated steel coil
5	Feeding range (mm)	380
6	Main motor power (kw)	1.1
7	Seal inner width（mm）	16,19,25,32,40
8	L*W*H（mm)	1100*700*1200
9	Weight（kg）	300
10	Model	FR-5















1. Connect the power supply, make sure the running direction of the belt pulley(1) same as the arrow direction on the pulley.
2. Turn off the machine, run the machine by hand through pulley. Make the Mould(3) to the top place.

1. Feed the raw material into the machine through the shearing platform(6)
2. Do not turn on the machine! Produce 3-5 seals manually through the belt pulley. Make sure every seal can be pushed out.
3. Then turn on the machine to produce the seals.



+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++

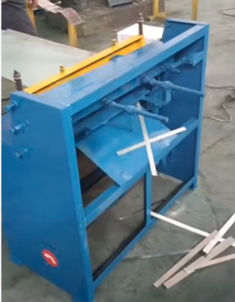

The cutting machine if needed:

Electric Cutting machine power: 1.5 KW
Machine size: 2000/50/1000
Machine weight: 250 kg
Cutting range:1500 mm x0.9 mm
Materials to be cut : steel sheets galvanized
The total power for clip machine+ cutting machine is 2.6 kw
Voltage is: (A) 380 x 3 phase x 50 HZ (B) single phase of 220 V if needed

CHANGS INTERNATIONAL
2026-02

















FAQ

( 1 ) Is the machine slow or fast?

It is fast with speed over 60 pieces / minute, which means you can produce 40,000 pieces per normal working day, and produce container steel strapping joint less than a month by one worker and if you have two machines but still use one worker, you can export a container of steel strapping joints every two weeks! .We have four kinds of main machines, PET-strapping clip-Making Machine, PP Plastic-strapping clip-Making Machine (for Open Strap Seal and Closed Strap Seal), Cord Strapping Buckle Making Machine , steel scrpas using machine to make steel or plastic-strapping clip-/ clip, and machine to make steel strapping sea.

( 2 ) which countries do you ship the machines of steel clips of steel scraps to?

2-1: malaysia



2-2: Indonesia

(3) Can you save our cost for making steel strapping clips by useing this machine:

Yes it is greatly save your cost in making steel strapping clips.....



.
