Steel Nestack Strap Seal Production Line



Steel Nestack Strap Seal Production Line

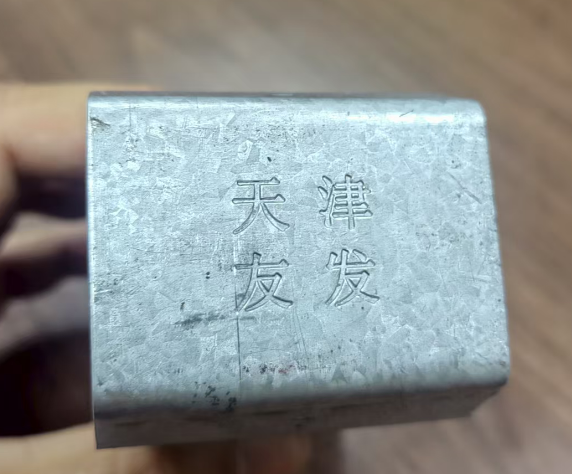

The Nestack 114M is a specific type of seal (also called a crimp seal or joint) used in conjunction with steel strapping and a power strapping machine

• Function: Its primary job is to securely lock the ends of a steel strap together after it has been tensioned around a package or pallet. It creates a strong, permanent joint.
• Design: It is a small, rectangular piece of ductile steel, pre-folded into a U-shape. The steel strap ends are inserted into it, and the machine uses powerful rollers to crimp (squeeze) the seal tightly around the straps, creating a mechanical bond.



 The main machines in the production line includes as below showing:
1 the pneumatic punch press machine

Press name: Outai high precision strong steel frame punch press
Press model:CN1-25L
Stroke length:70mm
Number of strokes:80-120s.p.m
Maximum mold height: 220 mm
Punch press area:680x300 mm
Slider area:350x300 mm

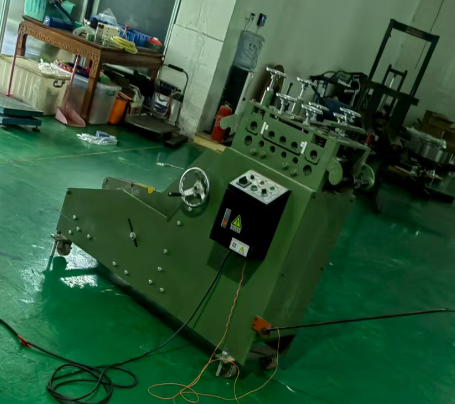

2. Dual purpose Feeder  and un-coiler for  the press machine:

Feeder Model: NCR-200
widtgh of materials:0-200 mm
thickness of materials:0.1-3.1 mm
max.feed.length:9999 mm
releasing sustom: pneumatic
feeding speed: 20
feed accuracy: +/- 0.1 mm
feeding direction: left to right
feed roll number:1(dia 66.5)
power supply:AC38050HZ
air supply: 5kg/CM2
main motor: AX 1.5kw-3kw(servo motor)

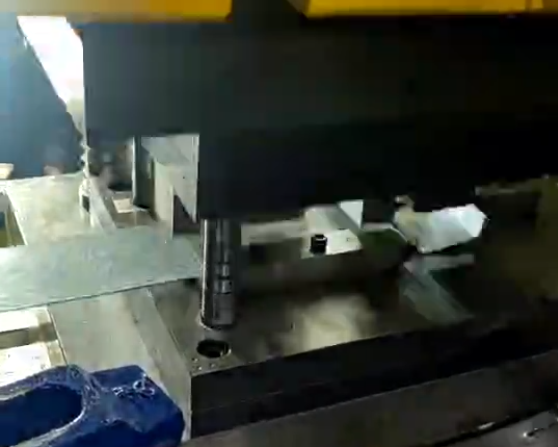

3 the mold for producing the steel strap nestack seal automatically

Parameter Progressive Die Spec        Must Be Compatible With 25-Ton Press Spec
Max Tonnage Required      25 Tons     < 25 Tons (with safety margin)
Shut Height        e250 mm Must be between Min and Max Shut Height of press
Bolster Size         , 400mm x 300mm  Must be < Press Bed Size (e.g., 500mm x 400mm)
Stripper Pressure       Calculated (e.g., 2 Tons)  Included in the total tonnage calculation
Feed Progression        50mm    Must be < Press Stroke Length
4. logo the nestack:

The logo can be designed and embossed in the mold but need customer design confirmation beforhand





5 quotation for the production line:
([email protected] for price) USD/set/FOB Tainjin port ( including press machine, feeder, un-coiler, mold, pump)
Delivery: 35 days after advance payment (50%)

Video of the machine:











More questions about the macine strapping / clip joint using scrap steel (semi-automatic strapping machine)

FAQ

( 1 ) Is the machine slow or fast?

It is fast with speed over 60 pieces / minute, which means you can produce 40,000 pieces per normal working day, and produce container steel strapping joint less than a month by one worker and if you have two machines but still use one worker, you can export a container of steel strapping joints every two weeks! .We have four kinds of main machines, PET-strapping clip-Making Machine, PP Plastic-strapping clip-Making Machine (for Open Strap Seal and Closed Strap Seal), Cord Strapping Buckle Making Machine , steel scrpas using machine to make steel or plastic-strapping clip-/ clip, and machine to make steel strapping sea.

( 2 ) which countries do you ship the machines of steel clips of steel scraps to?

2-1: malaysia



2-2: Indonesia

(3) Can you save our cost for making steel strapping clips by useing this machine:

Yes it is greatly save your cost in making steel strapping clips.....



.
