CATALOGUE FOR STEE STRP SEAL MACHINE
FOR KYRGYZTAN

Specification for Seal Machine

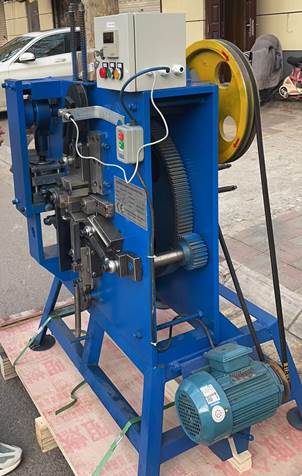

Machine Name

Seal machine

CE CERTIFICATION  NO.:

M.2019.206.C2559

Model No.

P-1932 (SUBORDINATE MODEL OF FR-3)

CE REPORT NO:

TCF no. MICEZ-1903-0265-MD+LVD

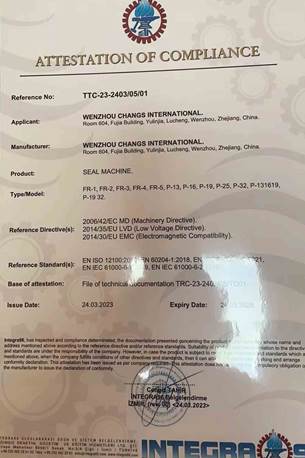

CE COVER PAGE

Technical data

seal size

Seal

W

L

T

Technical data

32 mm (inner diameter size)),cold roll steel raw material.

32 mm

45-57 mm

0.7-1.0

19

19

45-57mm

0.7-1.0

Feeding L

260-400 mm

Production rate

60-90 PC/MINUTE

Motor power

1.1 kw

Voltage plans

V

Phase

HZ

A plan

380

3

60

B plan

220

3

60

Technical data

C plan

220

Single phase

Accessories

LOGO mold : one set, female mold  and male mold

Steel un-coiler for 200 kg load

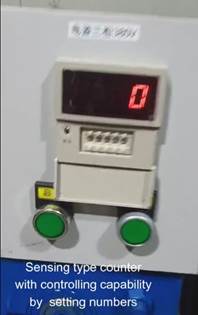

Automatic control counter for numbers controlling

Cutter of Spring Steel: 3 pieces

Core-plates parts 2 pieces. for each size o f32 and 19 mm

Net Weight

600KG

Gross Weight

620 KG

Machine Size

1400x680x1200

Packing Size

2.64 m2

Packing box
