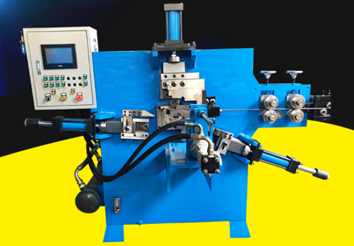

Strapping heavy-duty buckle 32 x 7 mm machine



Specification & Data for Strapping buckle machine



Machine Name

Strapping buckle machine

Machine Model

B1332
SIZE:13 16 19 25 32



Diameter of the buckle

13-32๏ผˆmm๏ผ‰

Motor

5.5KW 1400rpm



strap buckle machine

Maximum diameter:
7 ย mm

wire buckl machine



Technical data

Driving

Hydraulic system one set

Production rate

10 -22PC/MINUTE

Motor power

5.5KW

Control

PLC control system Stepper motor

Operation

Full automatic operation

Power

380 V

3 phase

60Hz

Machine size

1890x900x1980

Weight: 1400. KG

Feature of the machine

1) Wire Feeding by stepper motor, controlled by computer, high precision.
2) Automatic wire feeding, cutting, forming, continuous production.
3) Easy operation, stable and reliable.
4) One machine can produce multiple products, just need extra molds.
5) All machine parts are good quality, durable and long service life.
6) Can preset product quantity in the computer, when the quantity is reached, the machine will stop automatically.
7) Well designed and structured, easy to operate and maintain; one machine can make different dimensions of products just needs extra molds
8) Can set product quantity, when machine’s production reach this set quantity, the machine will stop automatically.
9) Driven by Hydraulic and computer control, so operation is reliable, stable, fast and precise
10) Long service life



Lead time

40 days after advance payment 30%



Payment term

30% advance payment by T/T before production
70-% balance against confirmation of samples and videos from the completed machine testing.
before shipping.



Unite price

Send email to zjaska@vip.163.com for the quotation







Video of the machine running and producing strapping buckles



Feature of the machine


The machine is designed and driven by hydraulic system with PLC
which can produce wire buckle with hard steel wires
It is lower cost than CNC machine with same production capacity and stable quality better than the one by pneumatic system
It save the labor and one worker can look after three machines in the same working day as it is PLC controlled
