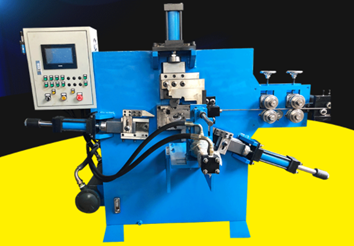

Double J hook making machine

QUOTATION SHEET







Specification & Data for Double J hook machine



Machine Name



Machine Model

ADHJM-13



Diameter of the hook

8.0-13.0๏ผˆmm๏ผ‰

Motor

5.5KW 1400rpm



Maximum diameter:
13 mm



Technical data

Driving

Hydraulic system one set

Production rate

10 PC/MINUTE

Motor power

5.5KW 1400rpm

Control

PLC control system Stepper motor

Operation

Full automatic operation

Power

380 V

3 phase

60Hz

Machine size

2000*1700*1800

Weight: 1300. KG

Core-plates parts 2 pieces. for each size of 19 and 32 mm











Machine Size

2000*1700*1800



Packing Size

2100 1800 1850



Feature of the machine

1) Wire Feeding by stepper motor, controlled by computer, high precision.
2) Automatic wire feeding, cutting, forming, continuous production.
3) Easy operation, stable and reliable.
4) One machine can produce multiple products, just need extra molds.
5) All machine parts are good quality, durable and long service life.
6) Can preset product quantity in the computer, when the quantity is reached, the machine will stop automatically.
7) Well designed and structured, easy to operate and maintain; one machine can make different dimensions of products just needs extra molds
8) Can set product quantity, when machine’s production reach this set quantity, the machine will stop automatically.
9) Driven by Hydraulic and computer control, so operation is reliable, stable, fast and precise
10) Long service life



Lead time

40 days after advance payment 30%



Payment term

30% advance payment by T/T before production
70-% balance against confirmation of samples and videos from the completed machine testing.
before shipping.



Unite price

Please send email for quotation zjaska@vip.163.com









Video of the machine testing
